OneClickVirt

Distinguishes between panel side and controlled side. The controlled side needs to have the corresponding virtualization environment installed in advance, which can be installed using the main installation instructions in this documentation.

Controlled Side

Corresponds to the main installation instructions in this documentation for environment installation. This will not be elaborated here. This tutorial has corresponding installation commands for the four major mainstream virtualization technologies. Please refer to them yourself.

If you need to use the panel's traffic control, you need to install the vnstat tool, download it yourself, like

apt install -y vnstat

Panel Side

The host machine needs to have one of nginx or caddy or OpenResty installed, as well as mysql version 8.4.6, requiring at least 1G of free memory and 2G of free disk space.

After installation is complete, the default startup addresses are:

Frontend: http://your-IP-or-domain

Backend API: http://localhost:8888

API Documentation: http://localhost:8888/swagger/index.html

Installation via Docker

TIP

Since the database starts together when starting, do not operate immediately when the container just starts. You need to wait at least 12 seconds.

Method 1: Using Pre-built Images

Setup in Fresh Environment

Use pre-built amd64 or arm64 images, which will automatically download the corresponding version based on the current system architecture:

docker run -d \
  --name oneclickvirt \
  -p 80:80 \
  -v oneclickvirt-data:/var/lib/mysql \
  -v oneclickvirt-storage:/app/storage \
  --restart unless-stopped \
  spiritlhl/oneclickvirt:latest

Or use GitHub Container Registry:

docker run -d \
  --name oneclickvirt \
  -p 80:80 \
  -v oneclickvirt-data:/var/lib/mysql \
  -v oneclickvirt-storage:/app/storage \
  --restart unless-stopped \
  ghcr.io/oneclickvirt/oneclickvirt:latest

The above methods are only for new installations.

Setup in Existing Environment

If you are installing again after deleting the container, you need to ensure that the originally mounted data is also deleted, so that the database will be reinitialized when the container is rebuilt.

docker rm -f oneclickvirt
docker volume rm oneclickvirt-data oneclickvirt-storage

Then follow the steps for fresh environment setup.

Delete Container Image

docker image rm -f spiritlhl/oneclickvirt:latest
docker image rm -f ghcr.io/oneclickvirt/oneclickvirt:latest

Only by deleting the container image and re-pulling the image can you ensure that the image used is the latest one; otherwise, the image will not be automatically updated.

Re-pull Container Image

docker pull spiritlhl/oneclickvirt:latest

or

docker pull ghcr.io/oneclickvirt/oneclickvirt:latest

Method 2: Self-compile and Package

If you need to modify the source code or customize the build:

git clone https://github.com/oneclickvirt/oneclickvirt.git
cd oneclickvirt

docker build -t oneclickvirt .

docker run -d \
  --name oneclickvirt \
  -p 80:80 \
  -v oneclickvirt-data:/var/lib/mysql \
  -v oneclickvirt-storage:/app/storage \
  --restart unless-stopped \
  oneclickvirt

Installation via Pre-compiled Binary Files

Linux

Download and execute

International

curl -L https://raw.githubusercontent.com/oneclickvirt/oneclickvirt/refs/heads/main/install.sh -o install.sh && chmod +x install.sh

Domestic (China)

curl -L https://cdn.spiritlhl.net/https://raw.githubusercontent.com/oneclickvirt/oneclickvirt/refs/heads/main/install.sh -o install.sh && chmod +x install.sh

Install environment with interaction

./install.sh

Install environment without interaction

noninteractive=true ./install.sh

Installation directory: /opt/oneclickvirt

After successful installation, you need to manually start the service:

systemctl start oneclickvirt

Other usage methods:

Stop service:

systemctl stop oneclickvirt

Enable auto-start on boot:

systemctl enable oneclickvirt

Check status:

systemctl status oneclickvirt

View logs:

journalctl -u oneclickvirt -f

Restart service:

Stop service:

systemctl restart oneclickvirt

The previous installation script will extract the static files to

cd /opt/oneclickvirt/web/

this path.

Use nginx or caddy to establish a static website with this path. Whether you need domain binding is your choice.

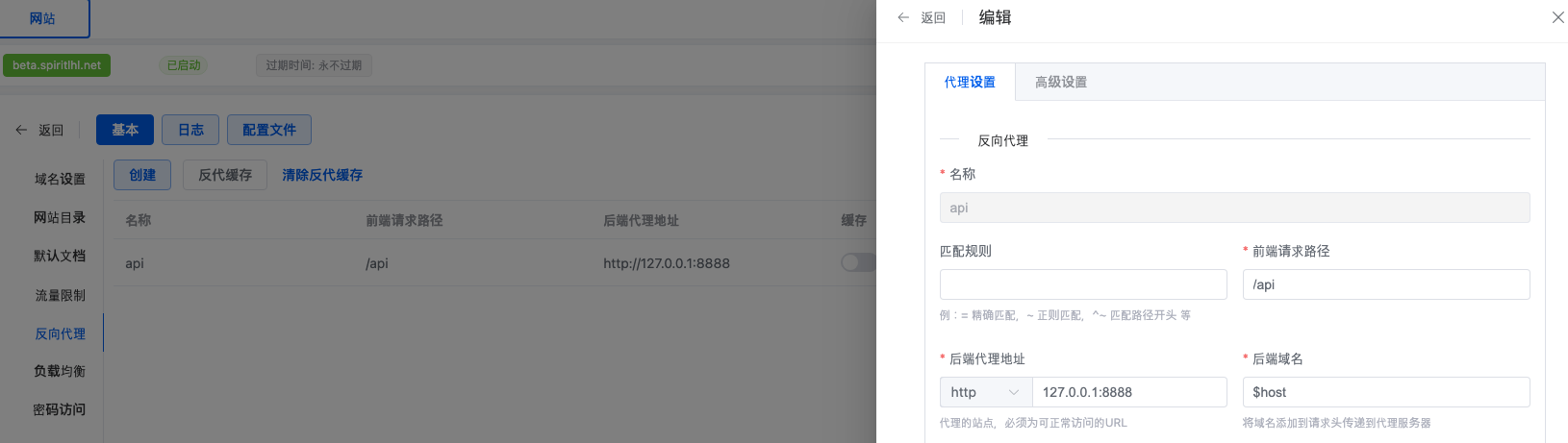

After the static files are deployed, you need to reverse proxy the backend address for frontend use. Here is a specific example using OpenResty:

You need to reverse proxy the path /api to the backend address http://127.0.0.1:8888. If you are using 1panel, you only need to fill in these settings. The default backend domain uses the default $host and does not need to be modified.

If you are using nginx or caddy, please refer to the proxy source code below and modify it yourself for proxying:

location /api {
    proxy_pass http://127.0.0.1:8888;
    proxy_set_header Host $host;
    proxy_set_header X-Real-IP $remote_addr;
    proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    proxy_set_header REMOTE-HOST $remote_addr;
    proxy_set_header Upgrade $http_upgrade;
    proxy_set_header Connection $http_connection;
    proxy_set_header X-Forwarded-Proto $scheme;
    proxy_set_header X-Forwarded-Port $server_port;
    proxy_http_version 1.1;
    add_header X-Cache $upstream_cache_status;
    add_header Cache-Control no-cache;
    proxy_ssl_server_name off;
    proxy_ssl_name $proxy_host;
}

Windows

Check

https://github.com/oneclickvirt/oneclickvirt/releases/latest

Download the latest compressed file for the corresponding architecture, extract and execute in the background.

In the same directory as the executed binary file, download

https://cdn.spiritlhl.net/https://raw.githubusercontent.com/oneclickvirt/oneclickvirt/refs/heads/main/server/config.yaml

This is the configuration file that will be needed subsequently.

After downloading the web-dist.zip file, extract it and use the corresponding program to establish a static website, and set up the reverse proxy similar to Linux.

Database Initialization

After installing and starting mysql, create an empty database oneclickvirt with type utf8mb4. It's best to make it accessible only locally 127.0.0.1. Save the corresponding username and password.

After opening the corresponding frontend page, it will automatically redirect to the initialization interface.

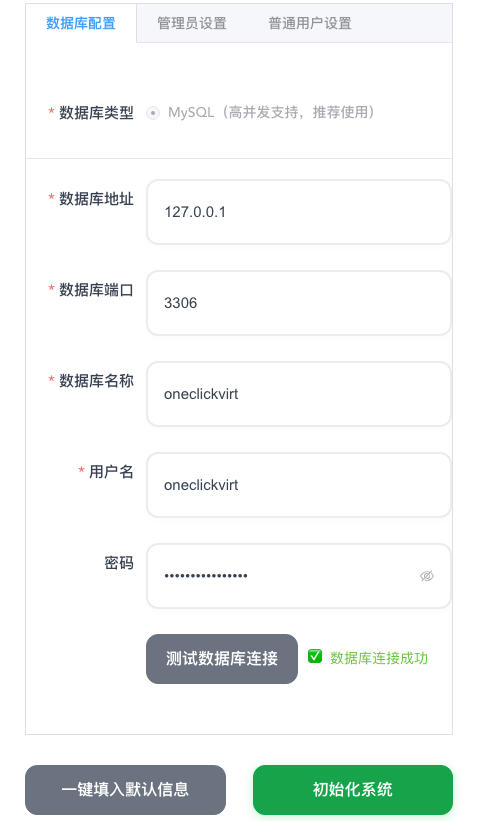

Fill in the database information and related user information. If the database connection test is successful, you can click to initialize the system.

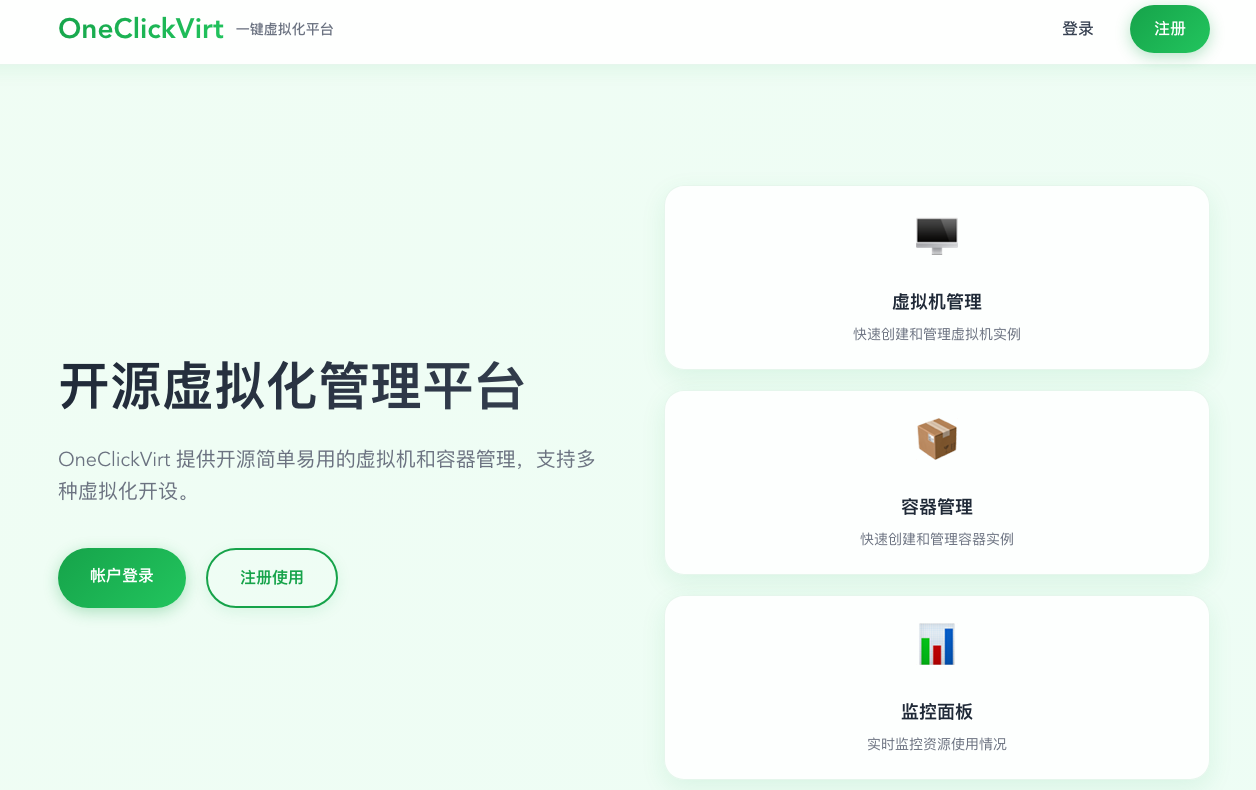

After completing initialization, it will automatically redirect to the homepage, and you can explore and use it yourself.

If you use the default user information for initialization, the default accounts are:

Administrator account name

admin

Administrator password

Admin123!@#

Regular user account name

testuser

Regular user password

TestUser123!@#

All images are loaded by default, but only images related to debian and alpine are enabled by default, so as to avoid too many images being enabled and making it difficult for users to choose. If you need additional types of images, you need to search and enable them by type of architecture version in the image management interface under administrator privileges.

Configuration File (Optional)

The default settings are sufficient for light usage. If you need advanced customization, you need to modify the configuration file or make changes in the admin interface after initialization.

https://github.com/oneclickvirt/oneclickvirt/blob/main/server/config.yaml

Here is the complete initialization configuration file. The specific configuration items will be explained below.

auth:
    email-password: ""
    email-smtp-host: ""
    email-smtp-port: "3306"
    email-username: root
    enable-email: false
    enable-oauth2: false
    enable-public-registration: false
    enable-qq: false
    enable-telegram: false
    qq-app-id: ""
    qq-app-key: ""
    telegram-bot-token: ""

Default system configuration items. The configuration will be read from here during initialization, and will be automatically written back when updating system configuration.

captcha:
    enabled: true
    expire-time: 300
    height: 40
    length: 4
    width: 120

Configuration items for the image captcha on the frontend login and registration pages.

cdn:
    base-endpoint: https://cdn.spiritlhl.net/
    endpoints:
        - https://cdn0.spiritlhl.top/
        - http://cdn3.spiritlhl.net/
        - http://cdn1.spiritlhl.net/
        - http://cdn2.spiritlhl.net/

Acceleration addresses to try when downloading images. Generally, no modification is needed, as the preloaded system images are all from repositories under this organization, and these CDNs are sufficient for accelerated downloads.

mysql:
    auto-create: true
    config: charset=utf8mb4&parseTime=True&loc=Local
    db-name: oneclickvirt
    engine: InnoDB
    log-mode: error
    log-zap: false
    max-idle-conns: 10
    max-lifetime: 3600
    max-open-conns: 100
    password: ""
    path:
    port:
    prefix: ""
    singular: false
    username: root

During initialization, if both path and port in this section are empty, initialization is required. In this case, the database you enter for initialization must be an empty database.

quota:
    default-level: 1
    instance-type-permissions:
        min-level-for-container: 1
        min-level-for-delete: 2
        min-level-for-vm: 1
    level-limits:
        1:
            max-instances: 1
            max-resources:
                bandwidth: 10
                cpu: 1
                disk: 1025
                memory: 350
            max-traffic: 102400
        2:
            max-instances: 3
            max-resources:
                bandwidth: 20
                cpu: 2
                disk: 20480
                memory: 1024
            max-traffic: 204800
        3:
            max-instances: 5
            max-resources:
                bandwidth: 50
                cpu: 4
                disk: 40960
                memory: 2048
            max-traffic: 307200
        4:
            max-instances: 10
            max-resources:
                bandwidth: 100
                cpu: 8
                disk: 81920
                memory: 4096
            max-traffic: 409600
        5:
            max-instances: 20
            max-resources:
                bandwidth: 200
                cpu: 16
                disk: 163840
                memory: 8192
            max-traffic: 512000

This section contains configuration items for level and quota restrictions. The default unit for memory, disk, and traffic is mb. The min-level configuration sets the minimum permissions in the system configuration. By default, level 1 can create containers, level 2 can perform delete operations on the regular user side, and level 1 can create virtual machines by default. default-level is the default level for newly registered users.

zap:
    compress-logs: true
    director: storage/logs
    encode-level: LowercaseLevelEncoder
    format: console
    level: info
    log-in-console: false
    max-array-elements: 5
    max-backups: 15
    max-file-size: 5
    max-log-length: 2000
    max-string-length: 1000
    prefix: '[oneclickvirt]'
    retention-day: 3
    show-line: false
    stacktrace-key: stacktrace

The only field that needs attention in this section is level, which defaults to info logging. If you need debug logs, please change it to debug.
